How to build a waffle chart with circle-shaped tiles using {waffle} and {ggplot2} libraries in R?

A publication-ready waffle chart to visualize disease outbreaks in the world

Overview

Waffle charts are a useful way to visualize part-to-whole relationships. Commonly, waffle charts depict a grid of regular squares to represent the distribution of a categorical variable.

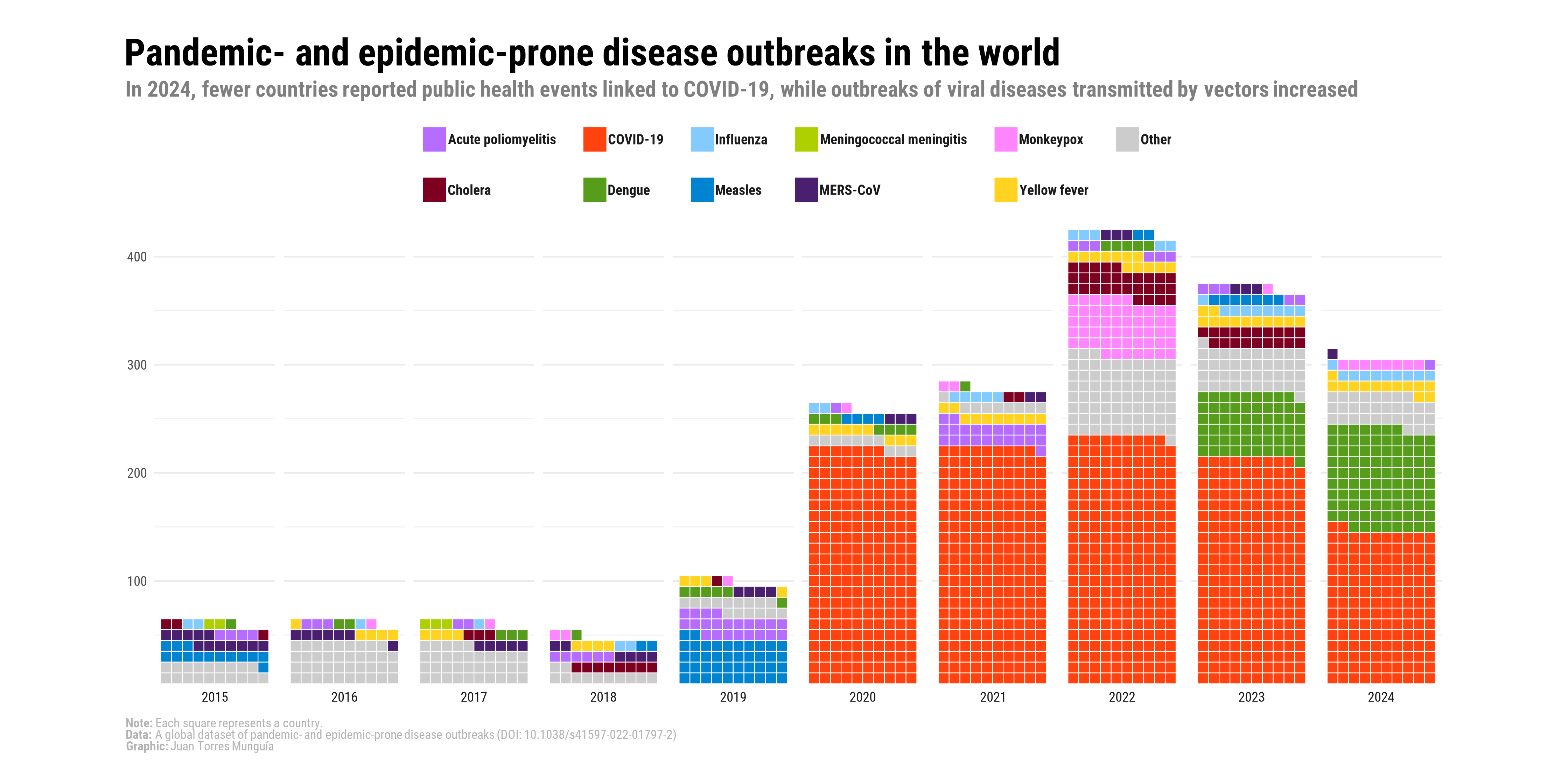

Previously, in a post on this Blog¹, I built the following waffle chart to visualize disease outbreaks in the world between 2015 and 2024.

This visualization was developed in support of an analysis paper published in BMJ Global Health, which can be accessed here². As can be seen, this waffle chart uses the traditional approach of stacking colored squares to represent the number of outbreaks per year by pathogen. In this post, I will illustrate a visual alternative in which circles are used instead of squares to represent the distribution of diseases by year.

About the data

The information is sourced from the global dataset of pandemic- and epidemic-prone disease outbreaks³, whose data are freely available at the GitHub repository of the disease outbreaks project.

This global dataset documents more than 3,450 outbreaks across over 230 countries and territories from January 1996 to January 2026. The diseases are classified according to the International Classification of Diseases, 10th Revision (ICD-10), and the dataset contains information on the year, country, and pathogen for each outbreak.

The dataset of pandemic- and epidemic-prone disease outbreaks is also part of the Humanitarian Data Exchange coordinated by the United Nations Office for the Coordination of Humanitarian Affairs (OCHA).

Set-up

To create the waffle chart, we will use the following R packages:

# Data manipulation
library(tidyverse)

# Waffle chart
library(waffle)

# Visualization extensions for ggplot2
library(paletteer)
library(ggsci)
library(ggtext)
library(shadowtext)
library(showtext)

# Create styled HTML/LaTeX tables
library(kableExtra)

Loading data

The table with the organized data can be downloaded here. This table contains the outbreaks recorded by year and by disease worldwide.

outbreaks_year_disease_grouped <- read.csv("outbreaks_year_disease_grouped.csv")

This table is shown below:

outbreaks_year_disease_grouped |>
  arrange(Year, -freq) |>
  kbl(caption = "Disease outbreaks per disease and year") |>
  kable_paper("hover", full_width = F)

Warning in attr(x, "align"): 'xfun::attr()' is deprecated.
Use 'xfun::attr2()' instead.
See help("Deprecated")

Disease outbreaks per disease and year

Year	icd104n	freq
2021	COVID-19	220
2021	Poliomyelitis	23
2021	Other	11
2021	Yellow fever	10
2021	Influenza	5
2021	Cholera	2
2021	Monkeypox	2
2021	Dengue	1
2022	COVID-19	230
2022	Monkeypox	53
2022	Other	39
2022	Hepatitis	38
2022	Cholera	29
2022	Yellow fever	12
2022	Poliomyelitis	6
2022	Dengue	5
2022	Influenza	5
2022	Measles	2
2023	COVID-19	210
2023	Dengue	60
2023	Other	40
2023	Cholera	19
2023	Yellow fever	12
2023	Influenza	9
2023	Measles	7
2023	Poliomyelitis	5
2023	Chikungunya	5
2023	Monkeypox	1
2024	COVID-19	142
2024	Dengue	95
2024	Other	32
2024	Yellow fever	13
2024	Influenza	10
2024	Monkeypox	8
2024	Poliomyelitis	1
2025	Influenza	121
2025	COVID-19	109
2025	Chikungunya	38
2025	Monkeypox	35
2025	Cholera	31
2025	Other	27
2025	Measles	7
2025	Yellow fever	5
2025	Poliomyelitis	2

Step 1. Visual elements of the plot

First, I define the font to be used in the final chart. To do this, I commonly use the font_add_google() function from the showtext package. package. This function retrieves font families from the Google Fonts repository. In this example, I use the Atkinson Hyperlegible Next font.

# Add custom font
font_add_google("Atkinson Hyperlegible Next", "Atkinson Hyperlegible Next")
showtext_auto()

Then, I customize a theme to be applied to the plot.

# Custom theme for the waffle chart
theme_waffle_chart <- function() {

  # Introduce the previously selected font
  theme_minimal(base_family = "Atkinson Hyperlegible Next") +

  # Custom theme settings
  theme(
    # Axis settings
    axis.title = element_blank(), # Remove axis titles
    axis.line = element_blank(), # Remove axis lines

    # Title settings
    plot.title.position = "plot", # Position of the title
    plot.title = element_textbox(
      color = "black",
      face = "bold",
      size = 24,
      margin = margin(5, 0, 5, 0), # Top, right, bottom, left margins
      width = unit(1, "npc") # Full plot width
    ),

    plot.margin = unit(c(0.25, 0.25, 0.25, 0.25), "cm"),

    # Legend
    legend.justification = c(1, 1),
    legend.title = element_text(face = "bold", size = 14),
    legend.title.position = "top",
    legend.text = element_text(face = "bold", size = 12),
    legend.direction = "vertical",
    legend.spacing.x = unit(30, "pt"),
    legend.key.size = unit(11, "pt"),
    legend.key.spacing.y = unit(3, "pt"),
    legend.key.spacing.x = unit(10, "pt"),

    # Subtitle settings
    plot.subtitle = element_textbox(
      color = "grey50",
      face = "bold",
      size = 18,
      margin = margin(0, 0, 40, 0), # Top, right, bottom, left margins
      width = unit(1, "npc")
    ),

    # Caption settings
    plot.caption = element_textbox(
      color = "grey70",
      size = 14,
      hjust = 0
    ),
    plot.caption.position = "plot",

    # Background and margins
    plot.background = element_rect(
      color = "white",
      fill = "white"
    ),
    panel.grid = element_blank(),
    strip.text.x = element_text(face = "bold", margin = margin(t = 10), color = "black", size = 20),

    # Axis
    axis.ticks.y = element_line(linewidth = 1),
    axis.ticks.length.y = unit(5, "pt"),
    axis.text.x = element_text(face = "bold", color = "black", size = 12),
    axis.text.y = element_text(face = "bold", color = "black", size = 15),
    axis.title.x = element_text(face = "bold", margin = margin(t = 10), color = "black", size = 13),
    axis.title.y = element_text(face = "bold", margin = margin(r = 10), color = "black", size = 17)
    )
}

Then, I define the title, subtitle, and caption of the plot.

# Title, subtitle, and caption for the waffle chart
title_chart <- "Pandemic- and epidemic-prone disease outbreaks in the world | 2021–2025"
subtitle_chart <- "In 2025, influenza emerged as the most reported disease behind outbreaks, being responsible for 121 events."

For the caption, I use rich text by introducing markdown to format specific elements. This is enabled through the ggtext package.

caption_chart <- paste0(
  "**Note:** Each circle represents a country.",
  "<br>",
  "**Data:** A global dataset of pandemic- and epidemic-prone disease outbreaks (DOI: 10.1038/s41597-022-01797-2).",
  "<br>",
  "**Graphic:** Juan Torres Munguía."
  )

Step 2. Designing the waffle plot using ggplot2 package

First, I use the geom_waffle() function to construct the waffle chart with squares. The main arguments of this function include size (border size of the tiles), n_rows (number of rows in the waffle grid), flip (orientation of the tiles), color (border color), and make_proportional (whether values are rescaled to proportions).

Additionally, to

ggplot(outbreaks_year_disease_grouped,
      aes(fill = icd104n, values = freq)) +
  geom_waffle(size = 0.75,
              n_rows = 10,
              flip = TRUE,
              color = "white",
              make_proportional = FALSE) +
  facet_wrap(~Year,
             nrow = 1,
             strip.position = "bottom")

In this example, I use the set of colors from the paletteMartin palette of the colorBlindness package. I also add the custom theme() along with the title, subtitle, and caption elements.

ggplot(outbreaks_year_disease_grouped,
                aes(fill = icd104n, values = freq)) +
  geom_waffle(size = 0.75,
              n_rows = 10,
              flip = TRUE,
              color = "white",
              make_proportional = FALSE) +
  facet_wrap(~Year,
             nrow = 1,
             strip.position = "bottom") +
  scale_fill_manual(values = c(paletteer_d("colorBlindness::paletteMartin"))) +
  scale_x_discrete() +
  scale_y_continuous(labels = function(x) x * 10,
                     expand = c(0, 0)) +
  coord_equal() +
  labs(
    title = title_chart,
    subtitle = subtitle_chart,
    caption = caption_chart,
    x = "",
    y = "Frequency of disease outbreaks",
    fill = "Pathogen:") +
  guides(fill = guide_legend(position = "right")) +
  theme_waffle_chart()

Step 3. Transforming the squares into circles.

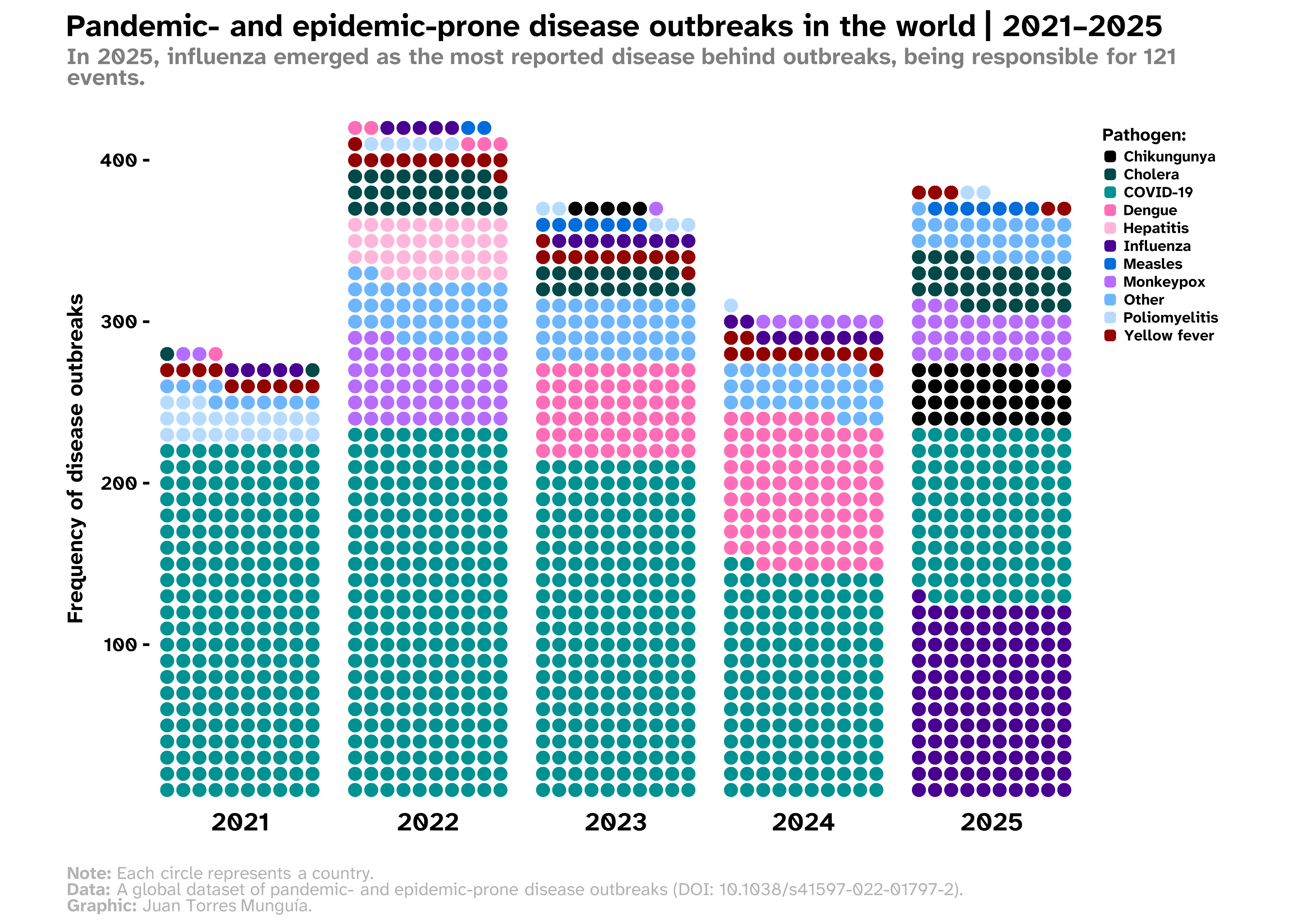

Finally, to transform the tiles from squares into circles, I use radius as an aesthetic inside aes(), assigning the value grid::unit(0.5, “npc”). This produces circular tiles while preserving the waffle layout structure.

ggplot(outbreaks_year_disease_grouped,
                aes(fill = icd104n, values = freq)) +
  geom_waffle(radius = grid::unit(0.5, "npc"),
              size = 0.75,
              n_rows = 10,
              flip = TRUE,
              color = "white",
              make_proportional = FALSE) +
  facet_wrap(~Year,
             nrow = 1,
             strip.position = "bottom") +
  scale_fill_manual(values = c(paletteer_d("colorBlindness::paletteMartin"))) +
  scale_x_discrete() +
  scale_y_continuous(labels = function(x) x * 10,
                     expand = c(0, 0)) +
  coord_equal() +
  labs(
    title = title_chart,
    subtitle = subtitle_chart,
    caption = caption_chart,
    x = "",
    y = "Frequency of disease outbreaks",
    fill = "Pathogen:") +
  guides(fill = guide_legend(position = "right")) +
  theme_waffle_chart()

Step 4. Save the waffle chart as a high-quality image

showtext_opts(dpi = 320) # Resolution of 320 dpi for high-quality images ("retina")
ggsave(
  "waffle-pandemics-2026.png",
  dpi = 320,
  width = 14,
  height = 10,
  units = "in"
)
showtext_auto(FALSE)
